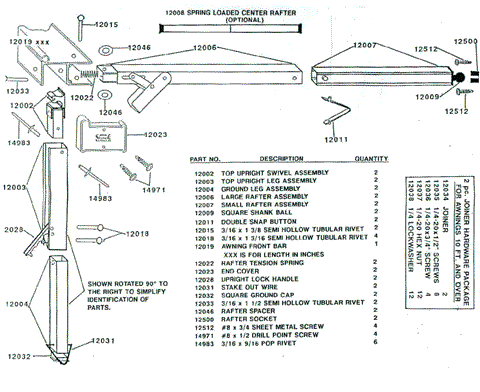

Parts Diagram for ShadeMaker Supreme Awning
ShadeMaker Supreme Awning Instructions & Parts List
This parts diagram applies to ShadeMaker Supreme awnings in sizes 8 through 14. Sizes 8 and 9 are customarily shipped as a one piece awning. Sizes 10 through 14 have two piece construction and are connected by a bolted aluminum angle connection system.
The supreme awning is divided into major replaceable components and is repaired in the field by replacement of those components.

PDF DOCUMENTSupreme Bag Awning Instructions & Parts List
